ROTOCONE VACUUM DRYER
slider image slider-image slider image slider image slider-image slider image slider image slider-image slider image

ABOUT   ROTOCONE VACUUM DRYER

  • Availability : from 15 Liters to 2000 Liters
  • Model : ROTOCONE VACUUM DRYER

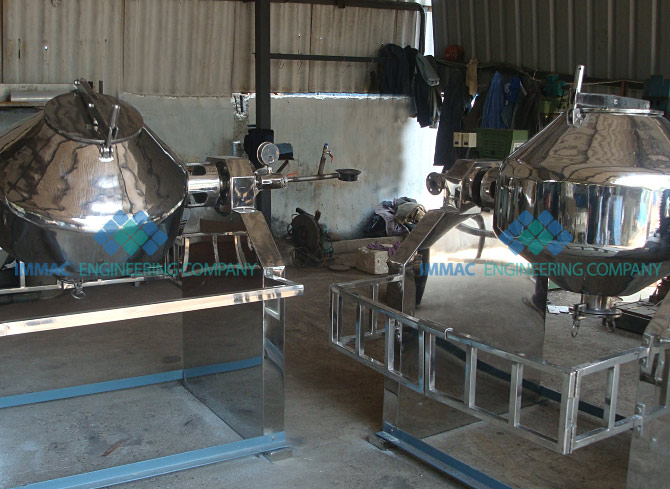

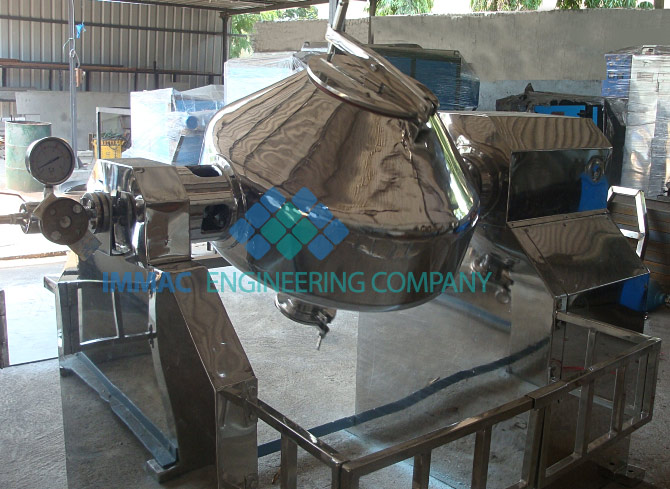

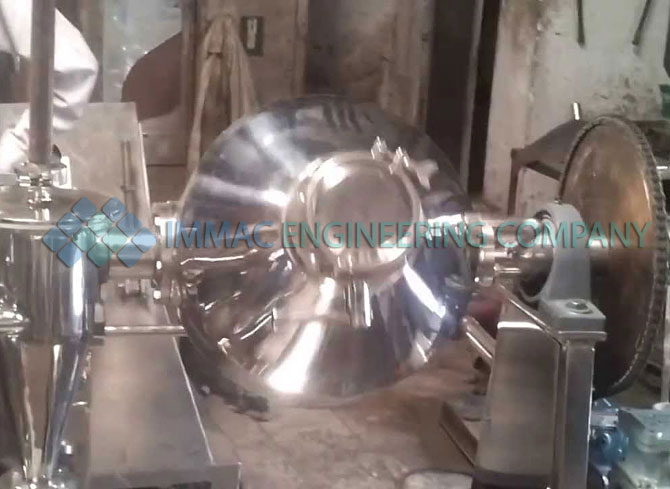

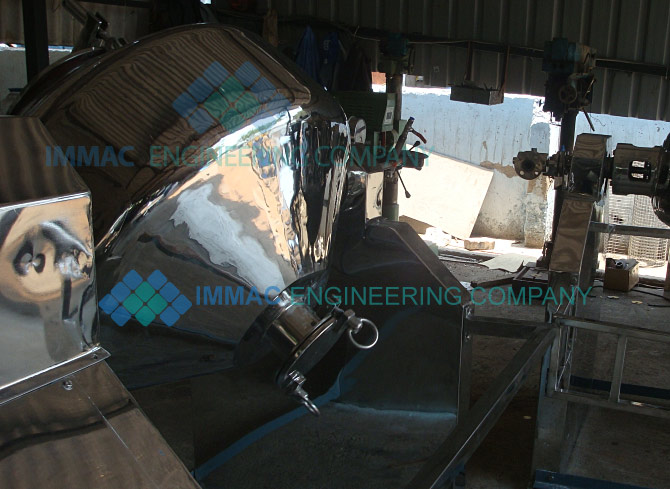

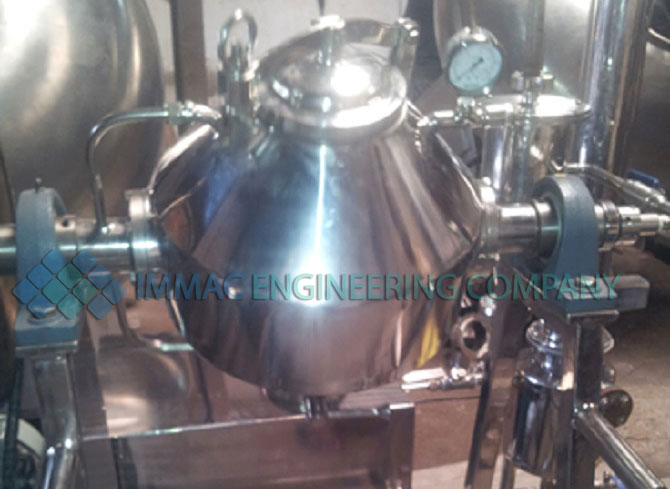

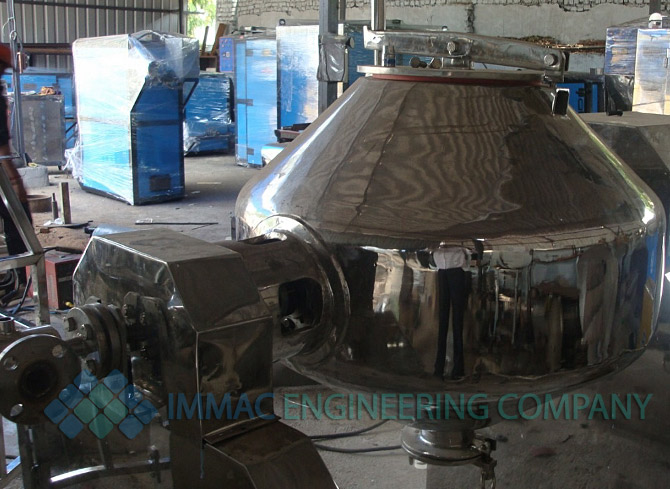

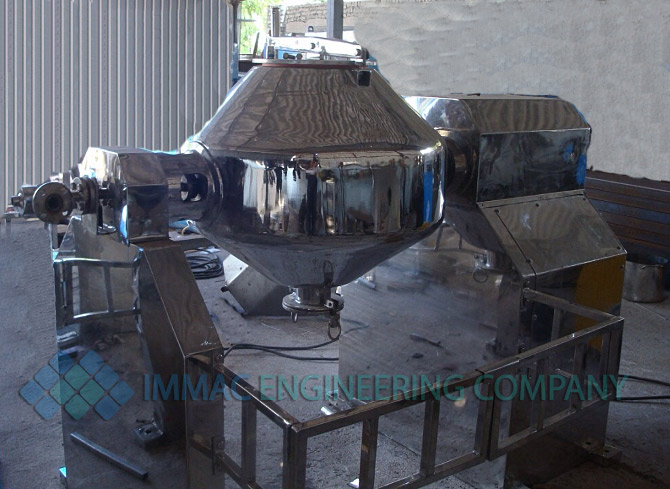

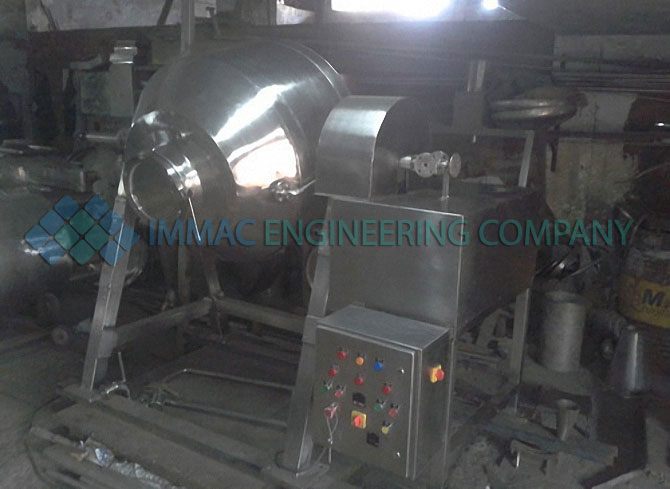

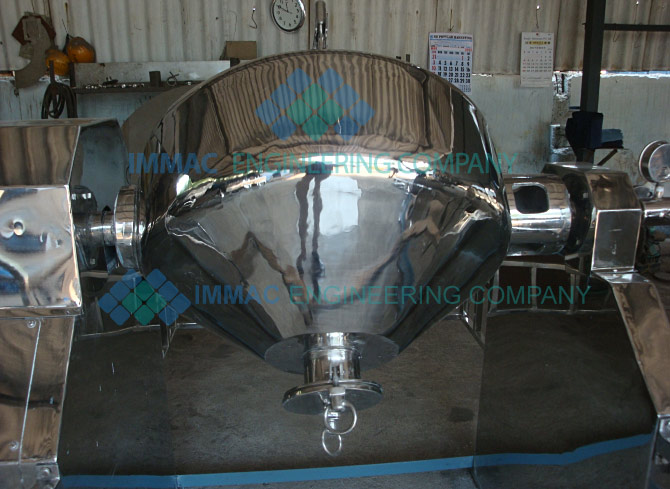

Rotocone vacuum dryer is a double conical vessel with an external jacket. During drying, the vessel rotates on its axis, resulting in the tumbling action of the product inside. This constant movement of the product increases the heat transfer between the heated surface and the product. Operated under vacuum, solvent recovery is carried out with a condenser and receiver. Crystalline and friable materials can be dried without size reduction.

SALIENT FEATURES of ROTOCONE VACUUM DRYER

  • Inner shell/cone and contact parts in SS316

  • Heating (H.W./Stream) Jacket in SS304

  • Insulation with jacket in SS304

  • Cyclone separator in SS304

  • Drive unit enclosed with SS Covers

  • Dry mechanical seal for vacuum side

  • Dry mechanical seal for waterside

  • FLP motor and electricals

  • Provision for nitrogen purging

  • Digital temperature indicator (FLP) at hot water inlet and outlet

  • Digital temperature indicator (FLP)

  • Temperature and vacuum gauges (Dail type on cone)

  • Safety guard with limit switch. Pulse jet type dust filter is provided inside the cone

  • Butterfly valve at discharge

  • Positioning wheel for cone

  • Drive: Gear box and motor direct coupled and box to cone drive shaft chain drive/Hbull gear and pinion

  • Construction and finish as per cGMP standards

  • Finish - Internal 320 GritMirrorPolish and Outer 180 GritMatFinish.

OPTIONAL
  • VFD for Drive motor

  • Condenser and receiver in SS316

  • Lump breakers on cone with FLP motor and dry mechanical seals

  • 2 Stage water ring vacuum pump

  • Vacuum pump (partial SS) with FLP motor.
