LAB EQUIPMENTS

WATER BATH
slider image slider-image

ABOUT   WATER BATH

  • Model : WATER BATH

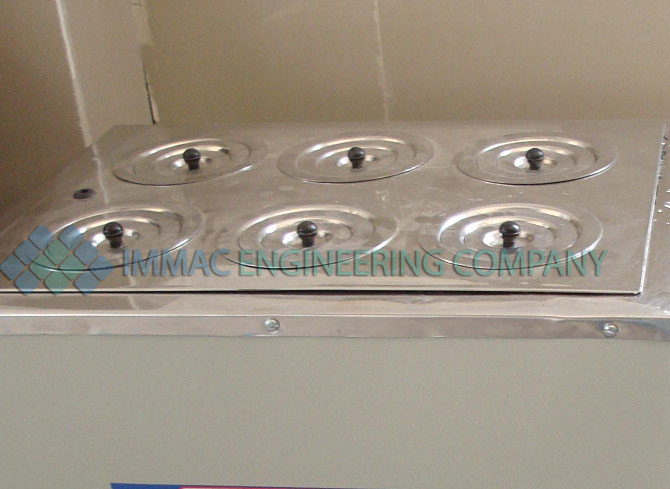

RECTANGULAR WATER BATH

Rectangular water bath is useful for boiling and general purpose work. Rectangular Water Bath is made up of long lasting single walled kettle element. Made of thick guage stainless steel, the lid is having 6 or 12 holes with concentric rings.


Size Rating Watts Holes
35 x 25 x 10 cm 1000 6 Hole of 3"Dia
40 x 30 x 10 cm 1500 12 Hole of 3"Dia


WATER BATH (THERMOSTATIC) - RECTANGULAR
  • Double walled in construction

  • Inner chamber SS and outer made of M.S. with powder coating

  • Temp. range 5° C above ambient to 95° C accuracy ± 2 °c

  • Temp. controlled by capillary type thermostat

  • Top lid with concentric rings made of stainless steel

  • The gap between the inner and outer chamber filled with glass wool insulation to minimize heat loss

  • Immersion type Heater should be provide

  • Long lasting elements Concentric rings to use flask from 50ml to 500ml capacity.

  • Positive screw to tighten the lid to obtain preface seal



  • Sizes Available
    Size Dimensions
    6 hole 35 x 25 x 10 cm.
    12 hole 40 x 30 x 10 cm.



    CONSTANT TEMPERATURE WATER BATH
  • Double walled in construction

  • Inner chamber and lid made of Stainless Steel. Outer chamber made of Mild steel with powder coating

  • Glass window is fixed on the front for both sides clear observations while immersion test

  • The gap between the chambers filled with high grade glass wool to minimize the heat loss

  • Temperature Range from ambient to 100 C and temperature Controlled by digital temperature indicator cum controller with an accuracy of ± 0.5° C.

  • A high speed stirrer with a motor of 1/20 HP is fitted to the unit for continuous stirring and this can maintain a uniform heating throughout the chamber

  • The heating mechanism comprises of set of heaters pertaining to fast heating to operated 230 volts AC only

  • Designed for immersion requirements and for external Circulation to maintain constant temp

  • To operated 230 Volts AC only.
