WALK-IN-GERMINATOR
slider image slider image slider image slider image slider image slider image slider image

ABOUT   WALK-IN-GERMINATOR

  • Availability : in Customized Sizes
  • Model : WALK-IN-GERMINATOR

Most suitable for conducting various experiments on variety of seeds under different conditions of temperature and humidity. Atmospheric conditions are created within the chamber to perforated different experiments without going on to the field.




Construction

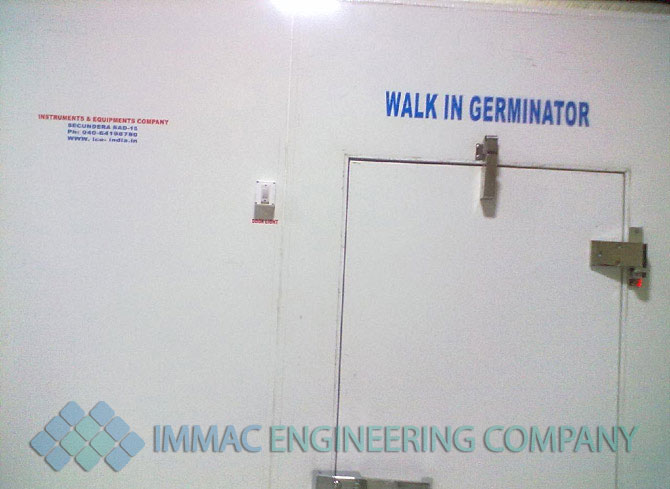

The walk in seed germinator is double walled construction pre-fabricated with puff insulated sandwich panels with cam lock system with air tight for effective cooling system in the room. The interior and exterior are pre-coated G I sheets. An exclusive door designed for the room with solid hinges and mantic catch system for locking system is provided.


The panels can be dismantled, shifted and rearranged at any required place. The density of the PU foam is 40 kgs/m3. The room is arranged with sufficient lighting for proper illumination in the room. The sandwich panel and marine plywood is provided for the flooring of the room.



Cooling & heating

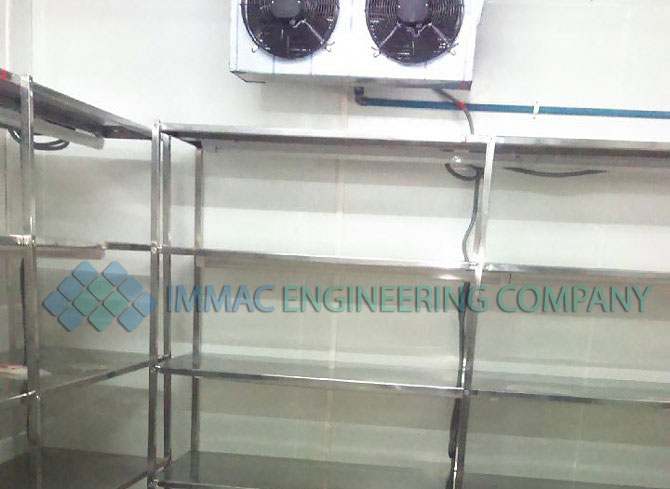

A hermetically sealed compressor provides temperature below ambient. The cooling system is efficient and durable as the compressor is additionally provided with over load protector in-buit in the compressor from the voltage fluctuation. The evaporator is made of SS304 with triple blower with cooling coil and heater to maintain the set temperature in the room.



Humidification

S.S humidifier with float valve mounted on caster wheel is used to create humidity.



Control System

A Digital Electronic controller is used for the operation in the walk in seed germinator. The dry bulb(temperature controller) has to be pre-set in the controller and the unit will function automatically. An additional safety controller will be provided to prevent from any failure of the controller or over shoot in the room.



Illumination

Sufficient illumination facility will be provided in the germination room with White Tube Light as required.. Cyclic Timer for the illumination with On/Off switch is provided.



Refrigeration systems

Custom designed SS304 cooling kit, Viva / Commander condenser kit with voltage stabilizer.



Controller

Digital Electronic Controller is used to operate in the Germinator.



Panel Board

Powder coated panel board with Temp Controller, Safety Controller, Timer, indicators, contactors / SSR Relays, MCBs, connector and switches.



OPTIONAL
DATA SCANNER / LOGGER WITH PC INTERFACE
