HOT AIR OVEN
slider image slider image slider-image

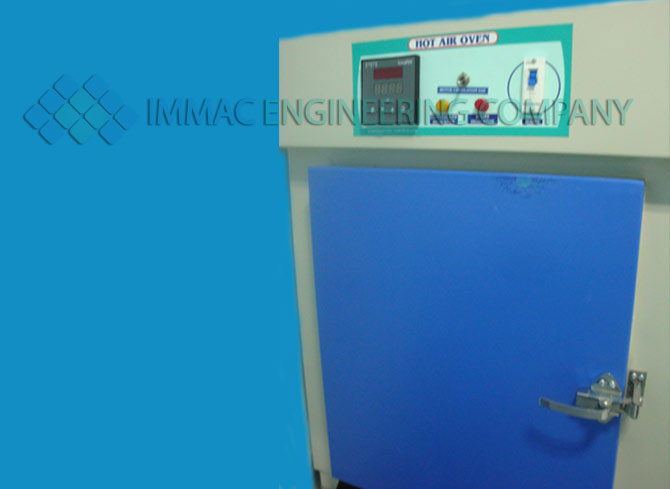

ABOUT   HOT AIR OVEN

  • Model : HOT AIR OVEN

Our range of Hot Air Oven is widely used in various industries and laboratories in their day-to-day heating and drying activities. These high-end ovens are manufactured in our well-equipped production units, using best possible quality input material. Our testing engineers work hard to check these products in our in-house testing units.

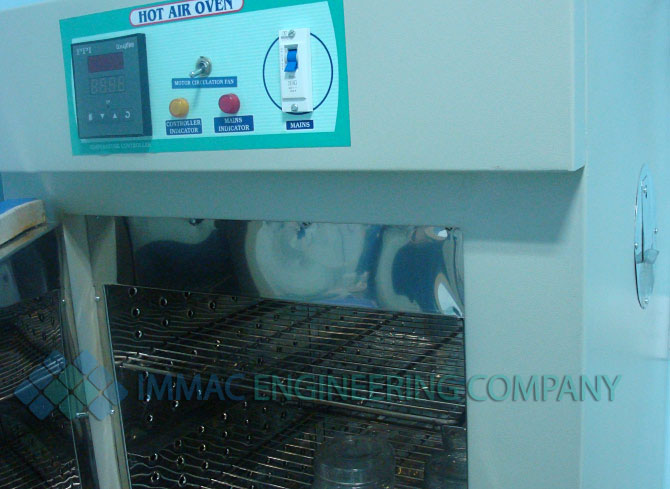

CONSTRUCTION OF HOT AIR OVEN

  • Hot air ovens are sturdy double walled units

  • Inner chamber: S.S.

  • Outer wall: SS / Mild Steel with Power coating

  • Gap between the walls fitted with glass wool insulation to avoid heat loses.

  • Heating elements are made of high grade chrome plated microme wire

  • Equipped with thermostat to control the temperature

  • Temperature range 50 C TO 250 C and Accuracy: +- 2 C

  • Air Ventilations are placed on top of both sides to remove hot gases / fumes

  • Heaters placed at the right and left side of the inner chamber

  • Control switches & pilot lamps are fitted on the front panel

  • Supplied with G.I. wire mesh.



  • OPTIONAL ACCESSORIES
  • Air Circulation Fan for Uniform Temperature

  • Digital Temperature Controller cum indicator in lieu of thermostat

  • S.S. Trays



  • Standard size available as below

Size in Inches (In Cms)

(H X W X D)

12" X 12" X 12"

(30 x 30 x 30 Cm.)

14" X 14" X 14"

(35 x 35 x 35 Cm.)

18" X 18" X 18"

(45 x 45 x 45 Cm.)

18" X 18" X 24"

(45 x 45 x 60 Cm.)

24" X 24" X 24"

(60 x 60 x 60 Cm.)

18" X 24" X 36"

(45 x 60 x 90 Cm.)

24" X 24" X 36"

(60 x 60 x 90 Cm.)
