LAB EQUIPMENTS

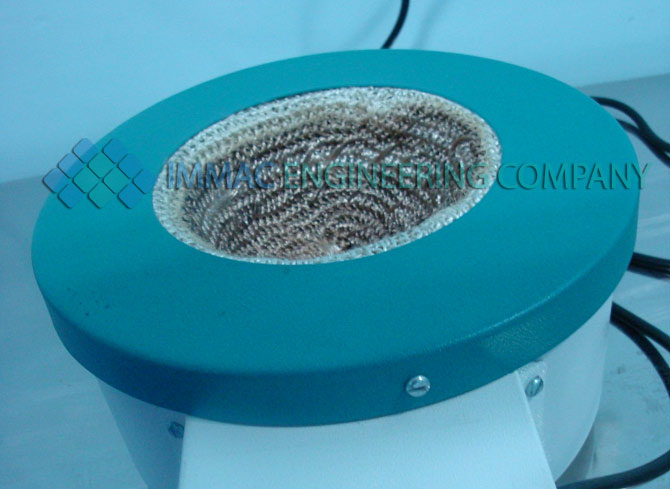

HEATING MANTLE
slider image slider-image

ABOUT   HEATING MANTLE

  • Model : HEATING MANTLE

specifications of heating mantle

  • Body of the Mantle made of spun joint less Aluminium

  • Heating element knitted fiber glass netting properly insulted

  • Long lasting element made by nichrome wire

  • Maximum surface Temp. 400 C

  • Temp. Controlled by energy regulator

  • Non breaking nichrome connection having porcelain beeds covered to nett

  • Easy to replace the netts



  • Size Available

    Rating Watts.

    250 ml

    150

    500 ml

    200

    1 Ltr.

    300

    2 Ltr.

    450

    3 Ltr.

    500

    5 Ltr.

    700

    10 Ltr.

    1000

    20 Ltr.

    1800




    CONSTANT TEMPERATURE WATER BATH
  • Double walled in construction

  • Inner chamber and lid made of Stainless Steel. Outer chamber made of Mild steel with powder coating

  • Glass window is fixed on the front for both sides clear observations while immersion test

  • The gap between the chambers filled with high grade glass wool to minimize the heat loss

  • Temperature Range from ambient to 100 C and temperature Controlled by digital temperature indicator cum controller with an accuracy of ± 0.5° C.

  • A high speed stirrer with a motor of 1/20 HP is fitted to the unit for continuous stirring and this can maintain a uniform heating throughout the chamber

  • The heating mechanism comprises of set of heaters pertaining to fast heating to operated 230 volts AC only

  • Designed for immersion requirements and for external Circulation to maintain constant temp

  • To operated 230 Volts AC only.
