DOUBLE CONE BLENDER
slider image slider image slider image slider image slider image

ABOUT   DOUBLE CONE BLENDER

  • Availability : from 15 Liters to 3000 Liters
  • Model : double cone blender

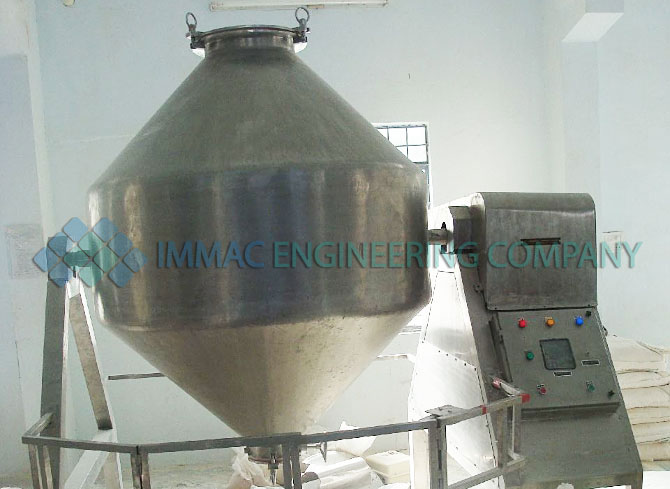

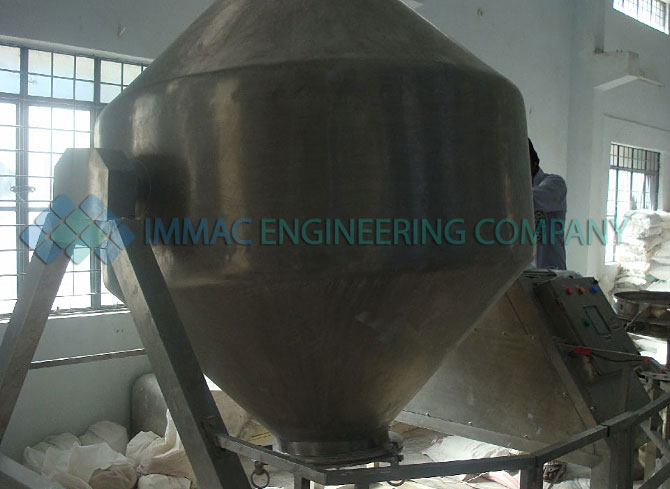

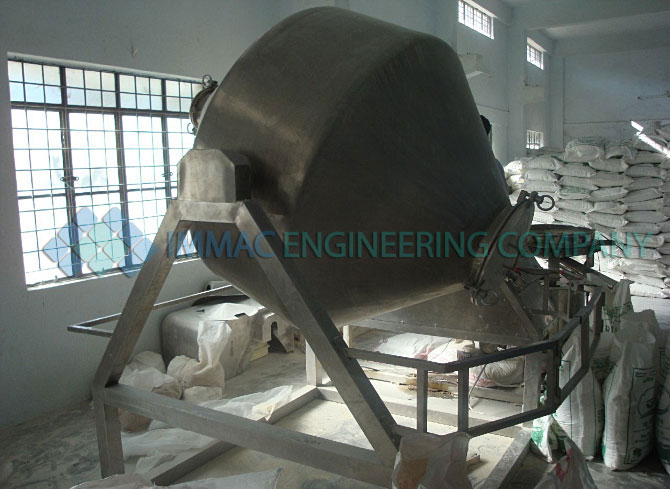

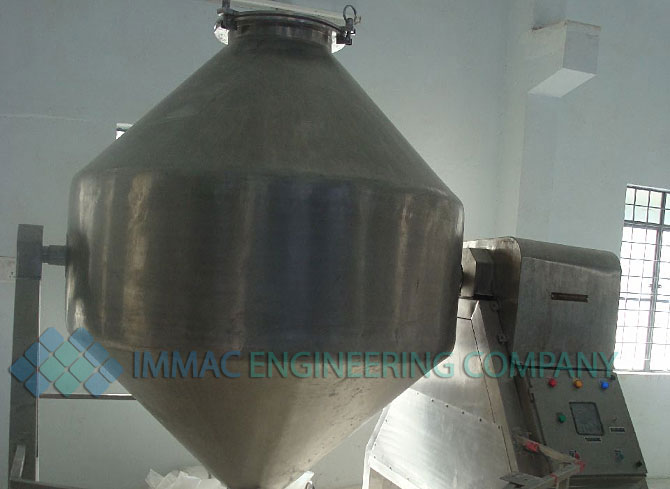

The double cone blender consists of two cone shaped sections with 45º slopes. The cone sections are welded at their wide ends to a centre band. The blender is mounted between two trunnions that permits the unit to tumble end over end. In operation, material is loaded to a fill level of 50 to 60 % of the blender’s capacity.


The blender tumbles and the material in the vessel spreads out. The transition area at the band between the cones prevents the material from sliding along the inner wall and instead causes the material to fold over itself. This provides gentle mixing with only very slight shear.


The blender is ideal for soft powders of granules that degrade by attrition. The smooth transition area in the vessel also simplifies cleaning because there are no areas to trap particles and cross-contaminate batches. Contra rotary baffles with mechanical seals at both ends can be provided for critical mixing applications.


SALIENT FEATURES of double cone blender

  • The conical shape at both ends enables uniform mixing and easy discharge.

  • All contact parts are made out of stainless 304 or 316 quality material, as required by customer.

  • Maximum care has been taken to ensure safe operation of the unit.

  • Manual rotating facility with hand wheel for inching. The same will be provided with ss cover & limit switch. ( In 200 Kgs. & above model )

  • Two nos. of safety road will be provided at back side. ( One LH side & one RH side )

  • Suitable size of butter fly valve at one end of the cone provided for material discharge & hole with openable cover provided at other end of the cone for material charging & cleaning.

  • One shaft with 04 nos. of fixed buffels with mirror polished provided inside the cone.

  • Cone will be mirror polished from the inside & outside & structure will be matt polished.

  • All moving parts covered with SS304 covers.

  • Safety guards made from SS304 pipes provided in front of the m/c with limit switch.

  • Panel fabricated from SS304 material with facility of three phase indication, D.O.L. tarter, digital timer & Amp. Meter.

  • As per customer requirement machine will be provided with left side drive or with right side drive. The conical shape at both ends enables uniform mixing and easy discharge.

  • Maximum care has been taken to ensure safe operation of the unit.

  • Worm reduction gear use for speed reduction.

  • Food grade rubber gasket will be used on both end of cone as well as in butterfly valve.

  • Inside & outside of the cone will be polished to the mirror finished.

  • All safety guards & covers made out of SS304 in GMP Model.

OPTIONAL
  • VFD for Drive motor.

  • Charging bins with TC Clamps and trolley.
