PHARMA PROCESS MACHINERIES

COATING PAN
slider image slider-image slider image slider image

ABOUT   coating pan

  • Availability : from 12” to 72”
  • Model : coating pan

Coating Pan is suitable for Tablet Coating.


Coating process is complex and requires careful monitoring and control to ensure satisfactory results. The film coating process as such is a combination of four processes going on simultaneously :

  • Distribution of coating material on large number of tablets

  • Mixing of large batch for homogenous result

  • Drying or evaporation of solvent

  • Solvent vapour removal

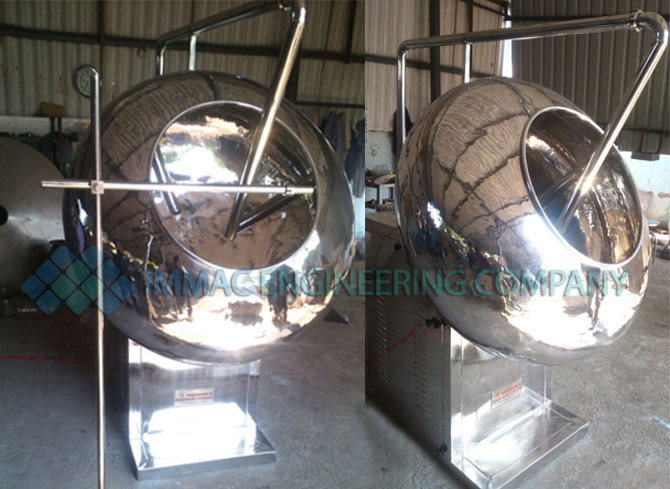

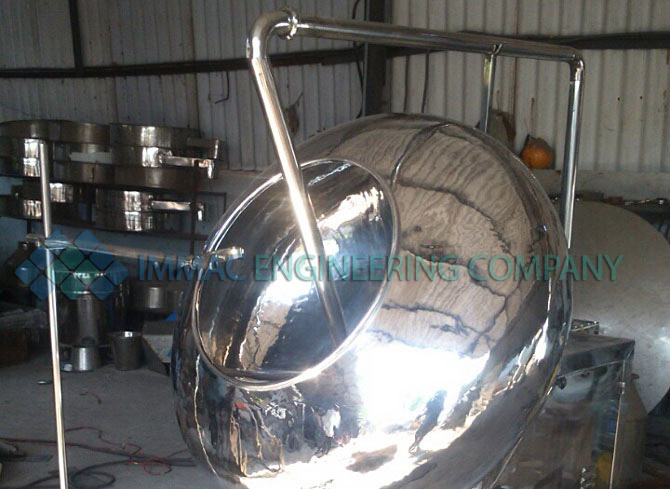

By optimizing each process in relation to each other, Vats & Vessels Coating Pan gives the best results. Coating Pan is of Semi - Ellipsoidal shape with circular opening at the top. Pan is mounted at an inclination of 30° to 40° to the horizontal and it is driven with worm and worm wheel type gear box and electric motor. Machine is designed with M.S. / S. S. fabricated structure and all arrangements are inside the enclosure - except electric control air filter and S.S. Pan

SALIENT FEATURES of coating pan

  • Product contact parts are in stainless steel 304 / 316, all SS Parts Polished to suitable finished required of pharmaceutical equipment

  • The gear box, motor, and hot air blower are enclosed in a mild steel enclosure or stainless steel in case of GMP models

  • Mounted on dynamounts to avoid foundations

  • Easy cleaning

OPTIONAL
  • HOT AIR BLOWER with temperature controller.

  • FLP motors and FLP push button station.
